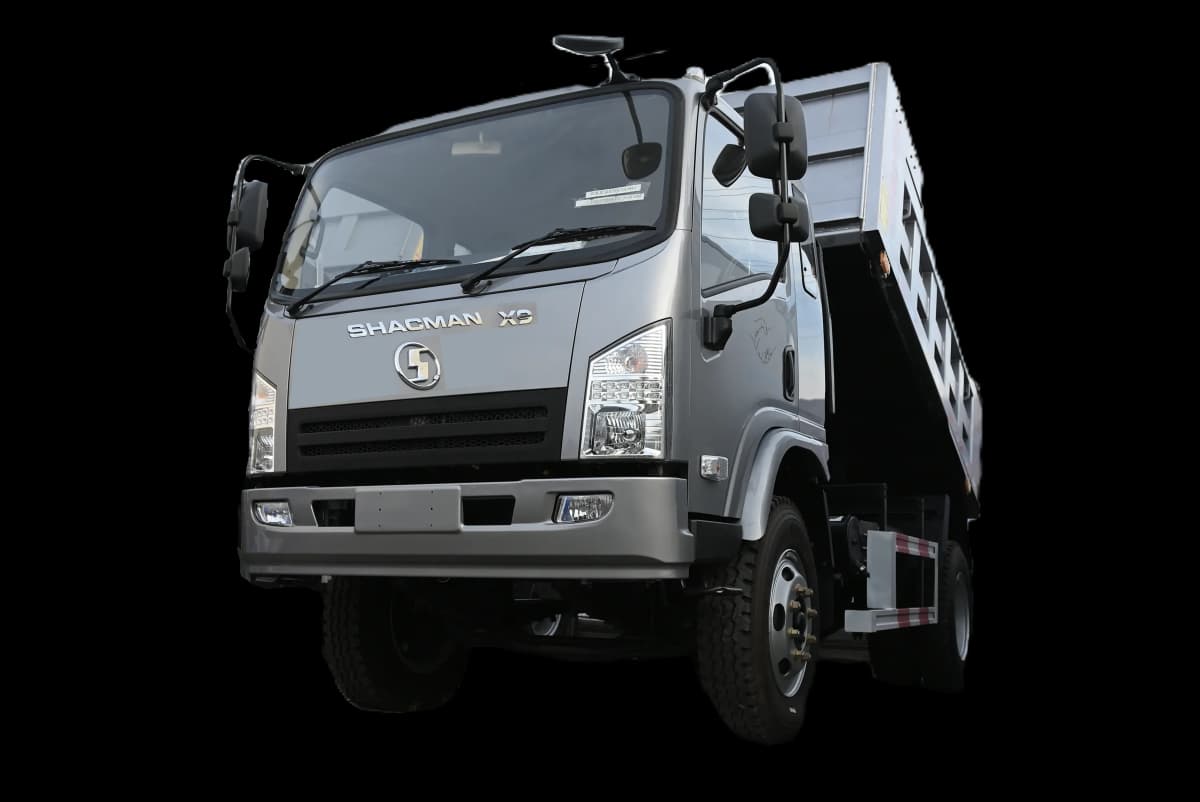

4×4 Dump Truck
Model: SX3143E2Y14J3620
Steering Position: Left hand drive
Driving Type: 4×4 (4×2 available)
Max Weight: 14,000 kg
Curb Weight: 6,500 kg
Load Capacity: 7,500 kg
Dimensions (LxWxH): 6000×2300×2900 mm
Wheelbase: 3600 mm
Engine: YUCHAI YC4D140-33, EURO II, 140HP / 103KW
Transmission: FAST 8JS85E-C + QD40J
Front Axle: 2.5t
Rear Axle: 10t single reduce axle, ratio 6.833
Frame: 800×250/7+4 double layer
Suspension: Front 9 / Rear 11+8
Fuel Tank: 200L Iron
Wheels/Tires: 9.00R20 (6+1)
Cabin: 1995 flat roof, mechanical seats, manual AC, electric windows, SHACMAN branding
Others: 100Ah maintenance-free battery, air filter, exhaust auxiliary brake, spare tire and carrier
Up Body: 3600×2100×800 mm, bottom 4mm, sides 3mm, rectangular box, single-cylinder lift φ160
